Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：45.0x42.0x9.0
Size of View Window(mm)：36.0x23.5
Display size(mm) ：33.26x20.46
Point spacing(mm)：0.32x0.29
Product application：Instruments
Visual angle：6H
Backlight type or brightness：R/G/B
Connection PIN Number：FPC-11PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7565R

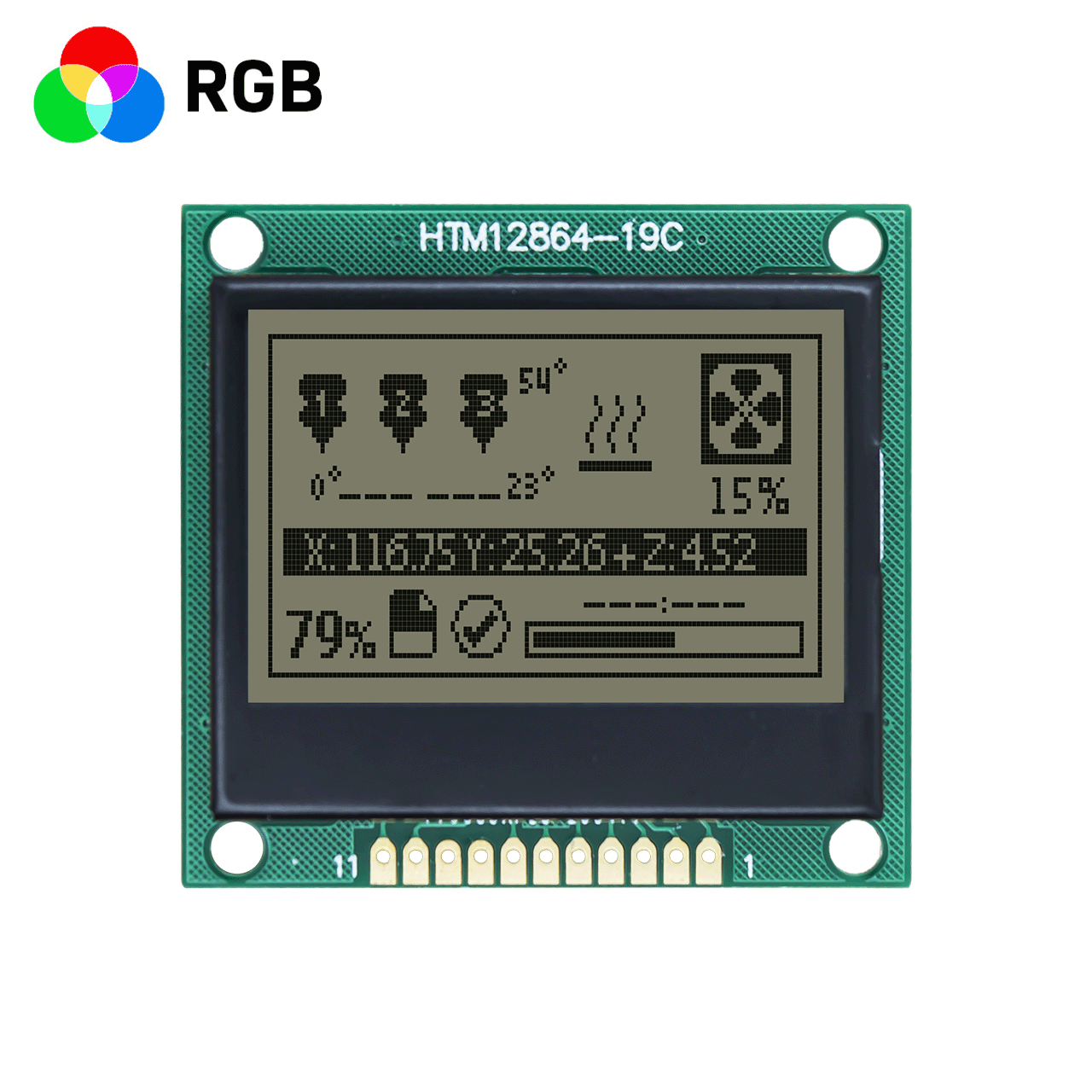

This Hot Display graphic LCD module displays dark gray pixels on an RGB red, green, and blue color background. This fully transparent LCD monitor is carefully designed with strong backlight built into the LCD to provide high contrast and display clear graphics to the viewer. The backlight has three Chinese colors to choose from. You can choose red, green or blue backlight. Because it is equipped with a fully transparent polarizer, the light source passes through the display screen without any loss.
This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. The H2864-19C-135S-A3P model is designed to withstand harsh operating conditions and will perform abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant
