Compatible with mainstream operating systems and embedded operatingsystems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Supports multi-point USB interface drive-free capacitive touch screen
Support OSD control buttons to help users adjust the LCD screen to the
best state for different appl ication environments， OSD menu can be switched
in Chinese and Engl ish。
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21.5 inch Capacitive TFT LCD Display with 1920x1080 Resolution HTM-YT215W01C-01478261_V0-0 | TFT Module | 1920X1080 |
|
348x275.5x32.0 | 21.5 | 21.5 | 334.58x245.04 | IPS | 400cd/m2 | HI | Anti-static ESD 8KV | 0~50℃ | 12V | |||
| 15.0 inch TFT Capacitive Touch Display with 1024x768 Resolution HTM-YT150W02C-01478257_V0-0 | TFT Module | 1024x768 |
|
348x275.5x32.0 | 15.0 | 15.0 | 334.58x245.04 | IPS | 400cd/m2 | HI | Anti-static ESD 8KV | 0~50℃ | 12V | |||
| 23.8 inch 1920x1080 capacitive touch TFT display module HTM -H238A1-HI A01C | TFT | 1920x1080 |
|
571.80(H) x 343.80(V) x 52.00(D) | 23.8 | 23.8 | 527.04（H）x 296.46（V） | IPS | 300cd/m2 | HI | Anti-static ESD 8KV | 0~50℃ | 12V | |||
| 8.0" TFT LCD Display Modules | 1024x768 HTM-H080D13-HI-A01G | TFT Module | 1024x768 |
|
197.0x155.0x23.4 | 8.0 | 8.0 | 162.05x121.54 | IPS | 300cd/M2 | HI | IPS | -20~70℃ | 5.0V | |||
| 4.0 inch TFT LCD display Module | 720x720 IPS TFT Screen HTM-H040A24-HI-T V0.0 | TFT Module | 720x720 |
|
84x84x0.7 | 4.0 | 4.0 | 71.928x71.928 | IPS | 350cd/m2 | HI | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||

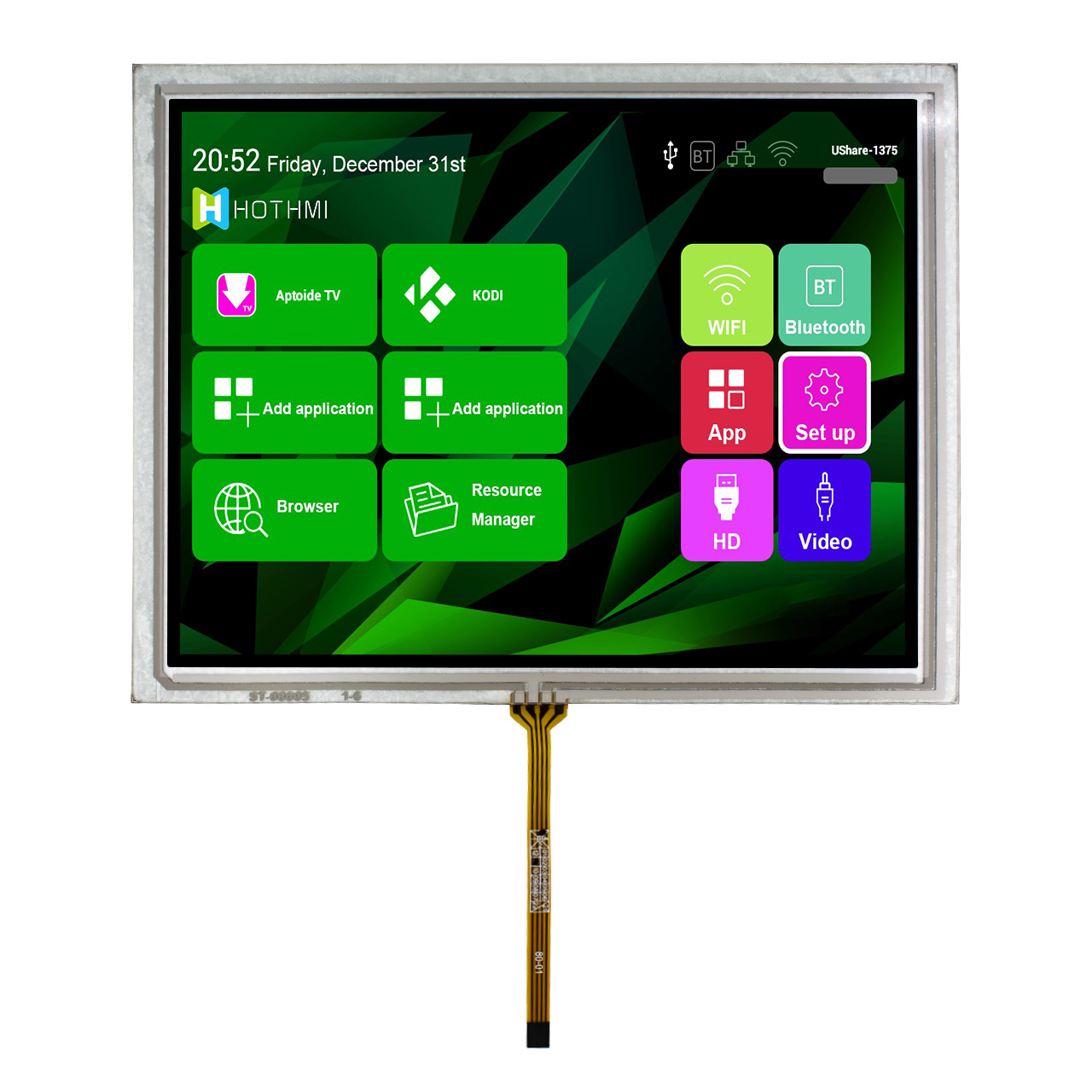

| 8.0" Resistive Touch TFT LCD Module | 1024x768 LVDS Display HTM-H080D14- LVDS-A01R | TFT Module | 1024x768 |
|
183.0x141.0x7.1 | 8.0 | 8.0 | 162.048x121.536 | IPS | 1000cd/M2 | FPC-30 pin | LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3V | T.B.D | |
| 21.5 "TFT LCD Display | 1920x1080 Capacitive Touchscreen | Optical Optical Binding Panel G03-21_5 | TFT Module | 1920x1080 |
|
526.0x319.2x48.0 | 21.5 | 21.5 | 475.0x267.0 | IPS | 400cd/m2 | DVI/HDM/DP/VGA | Anti-static ESD 8KV | -20~70℃ | 12~24V | |||
| 8.0 Inch TFT LCD Screen module | 1024x768 Raspberry Pi TFT Module HTM-H080A2-HI A03 | TFT Module | 1024x768 |
|
203.0x161.0x21.8 | 8.0 | 8.0 | 162.05x121.54 | IPS | 800cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | +3.3V | |||
| 15.0"TFT LCD Module | 1024x768 DVI / HDM / DP / VGA TFT Panel | Optical LCD G03-15 | TFT Module | 1024x768 |
|
350.4x278.8x51.0 | 15.0 | 15.0 | 304.0x22.8 | IPS | 400cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 12V~24V | |||
| 23.6"TFT Display Screen | 1920x1080 TFT Panel | Raspberry Pi HT2360EC | Graphic LCD Module | 1920x1080 |
|
566.3（W）x337h）69.4m | 23.6 | 23.6 | 519.3mm (H) x 293mm (V) | IPS | 250cd/m2 | HI | Anti-static ESD 8KV | -20~70℃ | 110V-240V |
