The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.36 inch 192x64 Graphic Dot Matrix Display Module | STN+Yellow-Green | Yellow-Green Backlight | MCU | AIP31108 HTM19264A-01Y-A5P | Graphic LCD Module | 192x64 |
|
130.0x65.0x13.5 | 103.92x38.94 | 97.486x32.462 | 0.508x0.508 | 6H | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | AIP31108 | |||

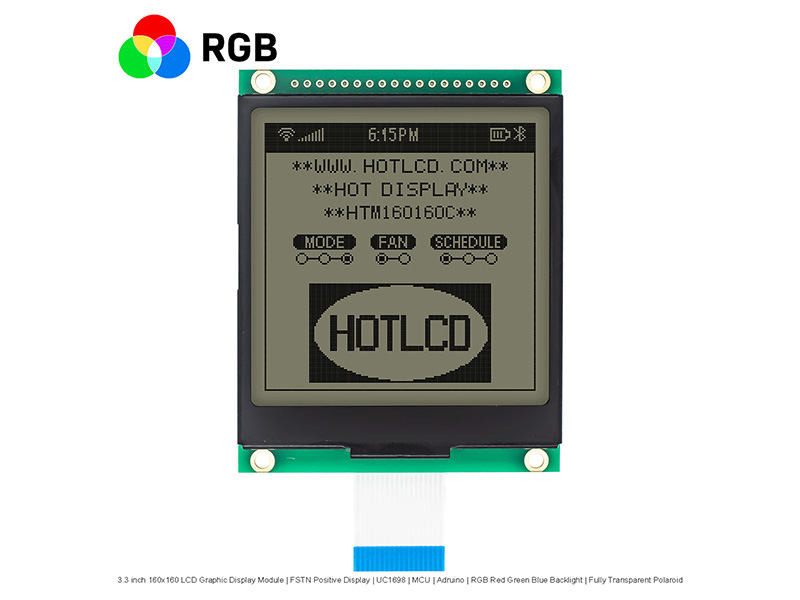

| 3.3 inch160x160 LCD Graphic Display Module/FSTN+Display/UC1698/Arduino/Red Green Blue Backlight HTM160160C-35S-A3P | Graphic LCD Module | 160x160 |
|
82.4x66.0x9.5 | 60.0x60.0 | 54.38x54.38 | 0.34x0.34 | 9H | FFC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698 | ||
| 3.3 inch 160x160 LCD Graphic Display Module/STN Positive Display/UC1698/MCU/Arduino/Blue on Gray HTM160160C-11Y-A3P | Graphic LCD Module | 160x160 |
|
82.4x66.0x9.5 | 60.0x60.0 | 54.38x54.38 | 0.34x0.34 | 9H | FFC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698 | ||
| 3.3 inch 160x160 LCD Graphic Display Module | STN Positive Display | UC1698 | MCU | Arduino HTM160160C-11W-A3P | Graphic LCD Module | 160x160 |
|
82.4x66.0x9.5 | 60.0x60.0 | 54.38x54.38 | 0.34x0.34 | 9H | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698 | |||
| 3.3 inch 160x160 LCD Graphic Display/DFSTN Negative Display/UC1698/MCU/Arduino/White on Black HTM160160C-41W-A3P | Graphic LCD Module | 160x160 |
|
82.4x66.0x9.5 | 60.0x60.0 | 54.38x54.38 | 0.34x0.34 | 9H | FFC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698 | ||

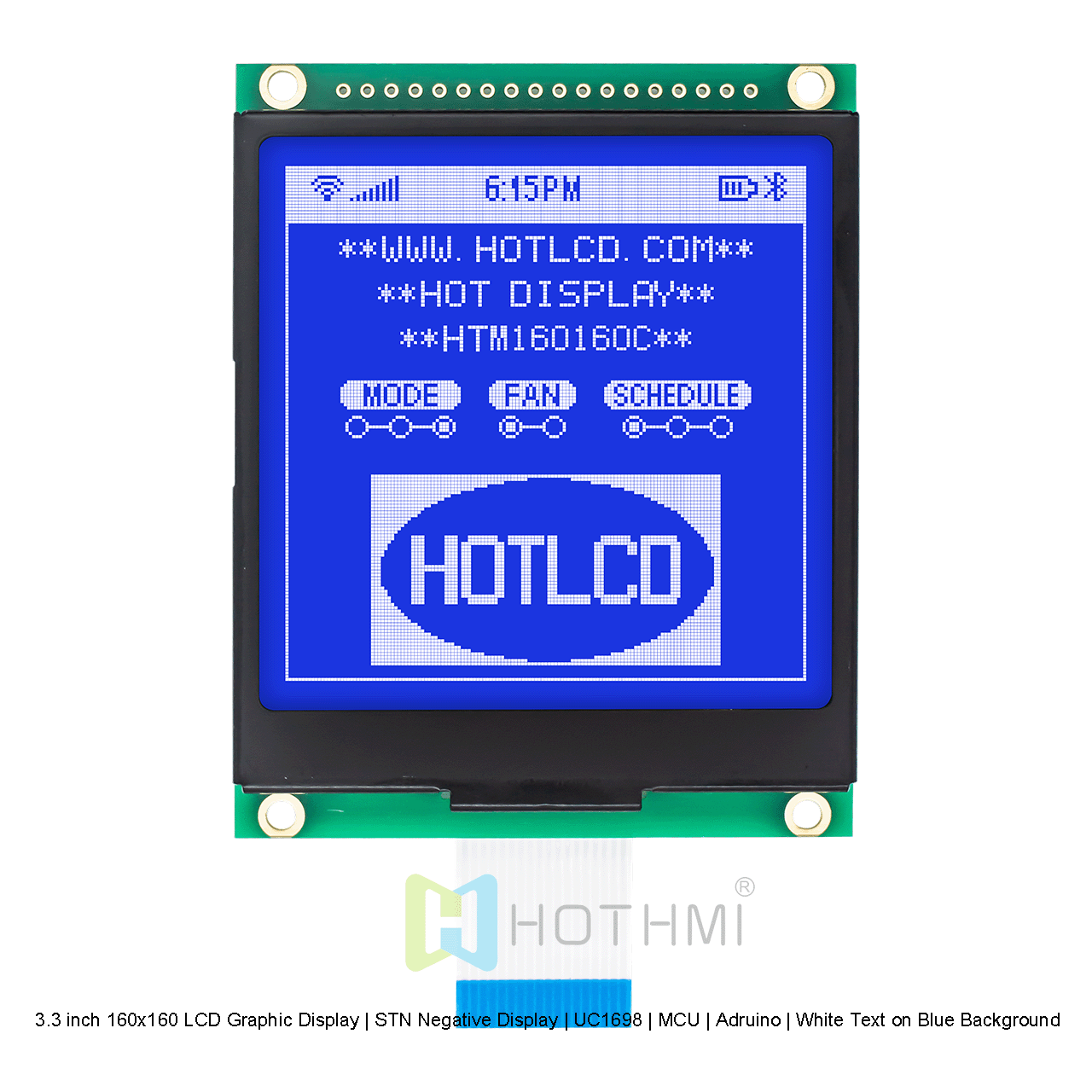

| 3.3 inch 160x160 LCD Graphic Display/STN Negative Display/UC1698/Arduino/White Text on Blue Background HTM160160C-25W-A3P | Graphic LCD Module | 160x160 |
|
82.4x66.0x9.5 | 60.0x60.0 | 54.38x54.38 | 0.34x0.34 | 9H | FFC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698 | ||

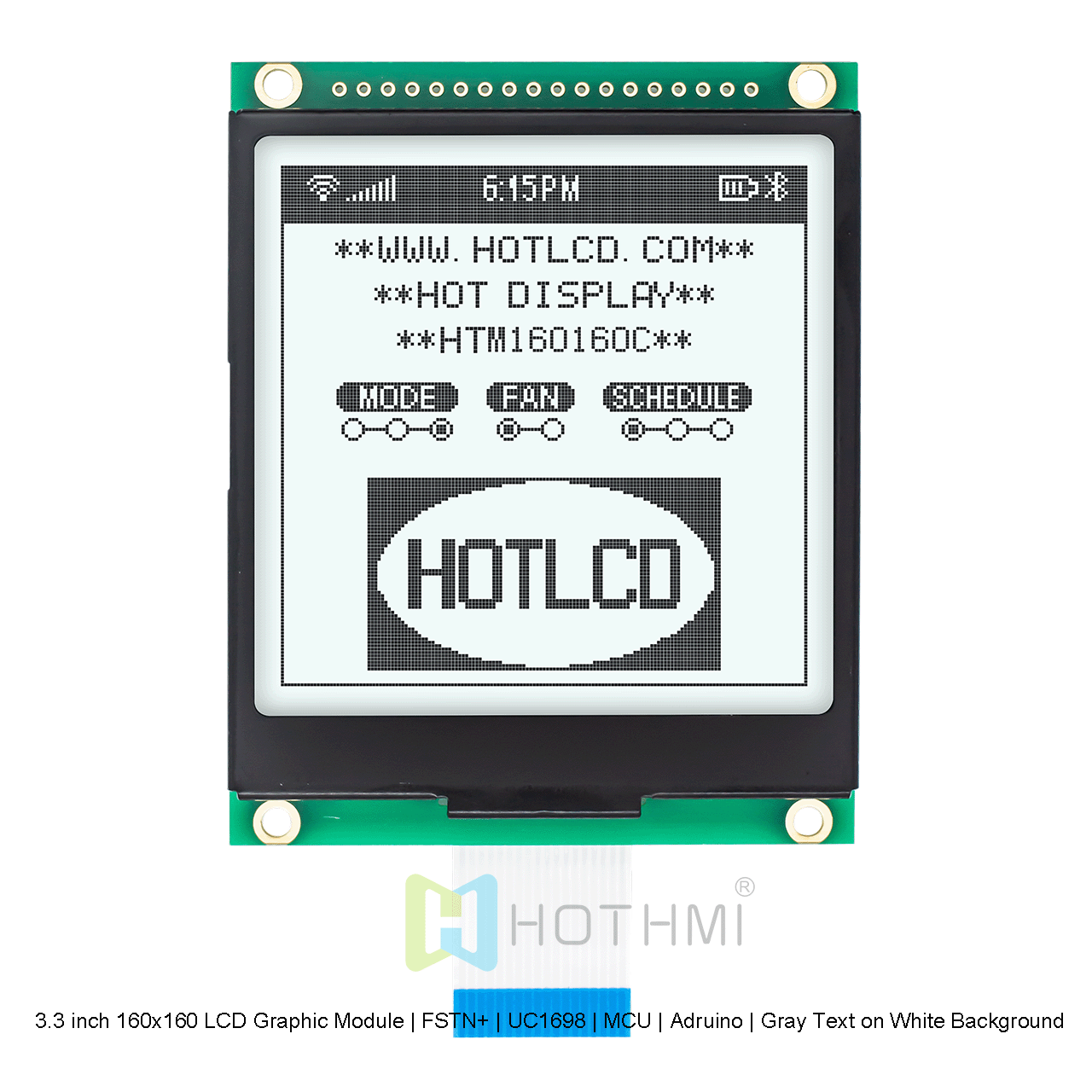

| 3.3 inch 160x160 LCD Graphic Module | FSTN+ | UC1698 | MCU | Arduino | Gray Text on White Background HTM160160C-31W-A3P | Graphic LCD Module | 160x160 |
|
82.4x66.0x9.5 | 60.0x60.0 | 54.38x54.38 | 0.34x0.34 | 9H | FFC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | UC1698 | ||

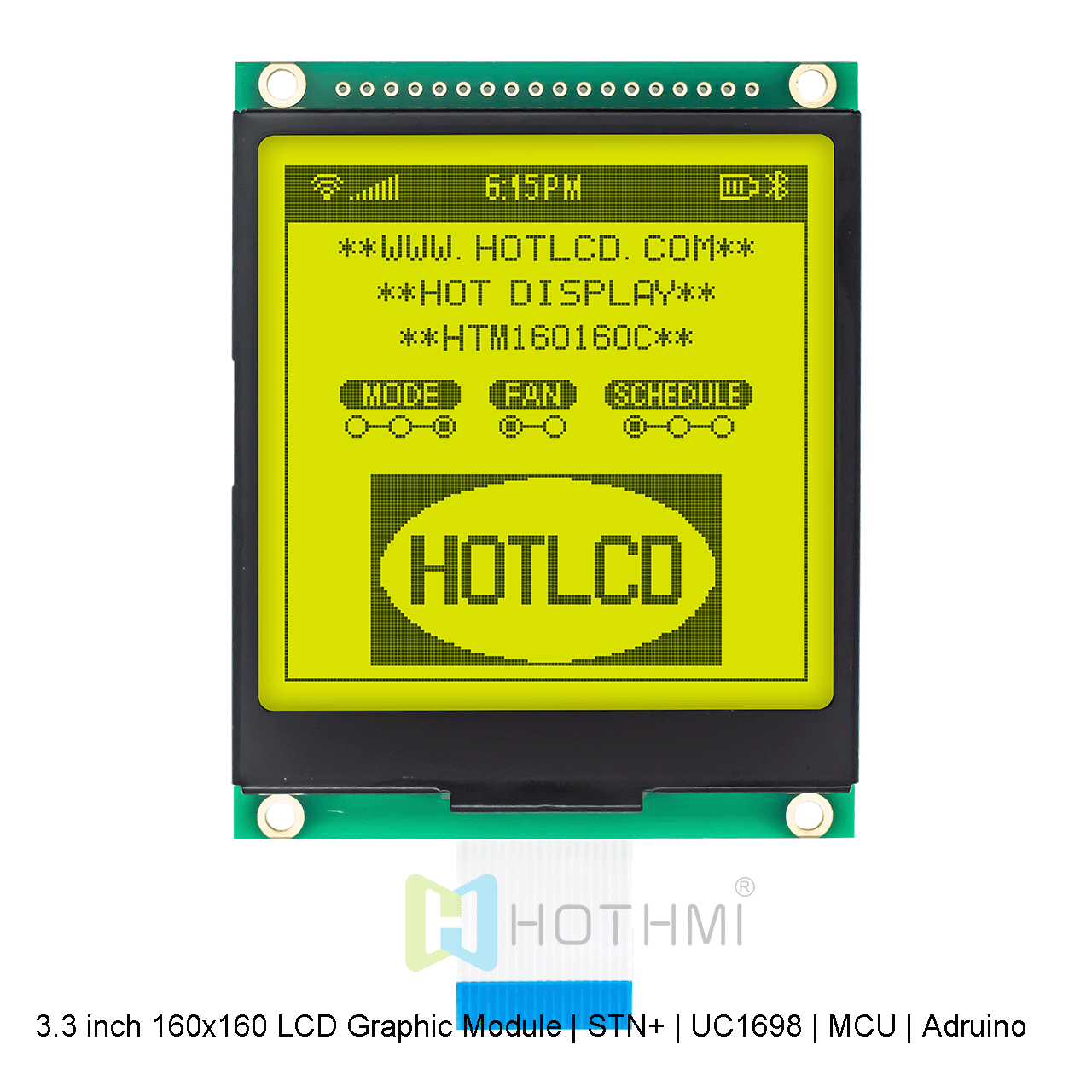

| 3.3 inch 160x160 LCD Graphic Module | STN+ | UC1698 | MCU | Arduino HTM160160C-01Y-A3P | Graphic LCD Module | 160x160 |
|
82.4x66.0x9.5 | 60.0x60.0 | 54.38x54.38 | 0.34x0.34 | 9H | FFC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | UC1698 | ||
| 5.1 inch 160x128 LCD Graphic Module | STN+ | RA6963 | MCU | Arduino | Blue on Gray HTM160128B-11W-A5P | Graphic LCD Module | 160x128 |
|
129.0x102.0x8.6 | 101.0x82.0 | 92.76x74.2 | 0.58x0.54 | 6H | 22PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | RA6963 | ||
| 5.1 inch 160x128 LCD Graphic Module | STN+ | RA6963 | MCU | Arduino HTM160128B-11Y-A5P | Graphic LCD Module | 160x128 |
|
129.0x102.0x8.6 | 101.0x82.0 | 92.76x74.2 | 0.58x0.54 | 6H | MCU | Anti-static ESD 8KV | -20~70℃ | 5.0V | RA6963 |
